Cast Water Stop/ water barrier in water retaining structures

Place of Origin : China

Brand Name : Longquan

Certification : ISO9001:2008

Model Number : LQ-048

MOQ : None

Price : Ask LQ

Packaging Details : Water stop in bags

Delivery Time : 20 days

Payment Terms : T/T; L/C

Supply Ability : Large Qty.

Contact Now

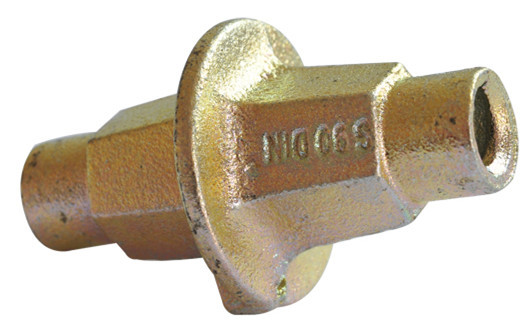

Cast Water Stop/ water barrier in water retaining structures

Water stops are used in water retaining structures. When using a recoverable anchor with a plastic concrete sleeve, cast water stop is recommend for watertightness.
Cast into the concrete wall between two separate tie bars. After pouring, tie rods are removed, the water stop remains in concrete. Allow two reducers per water stop.

Article No.	Bar Ø (mm)	Length (mm)	Plate/Spigot (mm)	Weight (kg)
LQ-048/15L	15	110	60/26	0.43
LQ-048/15W	15	110	65/26	0.55
LQ-048/20	20	160	80/31	1.26
To prevent water seeping alongside the thread bar. The spigot size for tubes inner dia 26mm or 31mm. Cast, self-color or galvanized; Customized size available. For barØ15, working load 90KN to DIN 18216, breaking load>190KN For barØ20, working load 150KN to DIN 18216, breaking load>350KN

We, Hebei Longquan Industry Co., Ltd. (formworkparts), are the manufacturer of formwork parts and scaffolding accessories from China. We mainly supply wing nuts, tie rod, water stop, hex. nuts, bar couplers, rapid clamps, frame formwork clamps, jack base, U head jack, prop nuts, prop sleeves, and other scaffolding fittings.
